The Vericom UTP CAT6a network cable is the ideal solution for fast, reliable connections that meet the most demanding standards. Designed to exceed electrical specifications of Category 6A (ANSI/TIA-568.2-D) and Class EA (ISO 11801), this cable guarantees exceptional performance with a frequency up to 650 MHz. Featuring solid 23 AWG conductors and integrated cross-fill, it effectively reduces crosstalk for smooth data transmission up to 10,000 Mbps. With 1,000 feet of solid cable, it offers a versatile and optimal installation for residential, commercial or industrial environments. Rigorously tested to ensure consistent performance, this network cable is ideal for meeting the current and future needs of network infrastructures.
Features:
-
Advanced Performance: Ultra-fast transmission up to 10,000 Mbps with a tested frequency up to 650 MHz.
-
Rugged Construction: 23 AWG solid conductors in a four-pair configuration with built-in cross-fill for maximum crosstalk reduction.
-
Standards Compliant: Meets and exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA requirements, ensuring seamless interoperability.
-

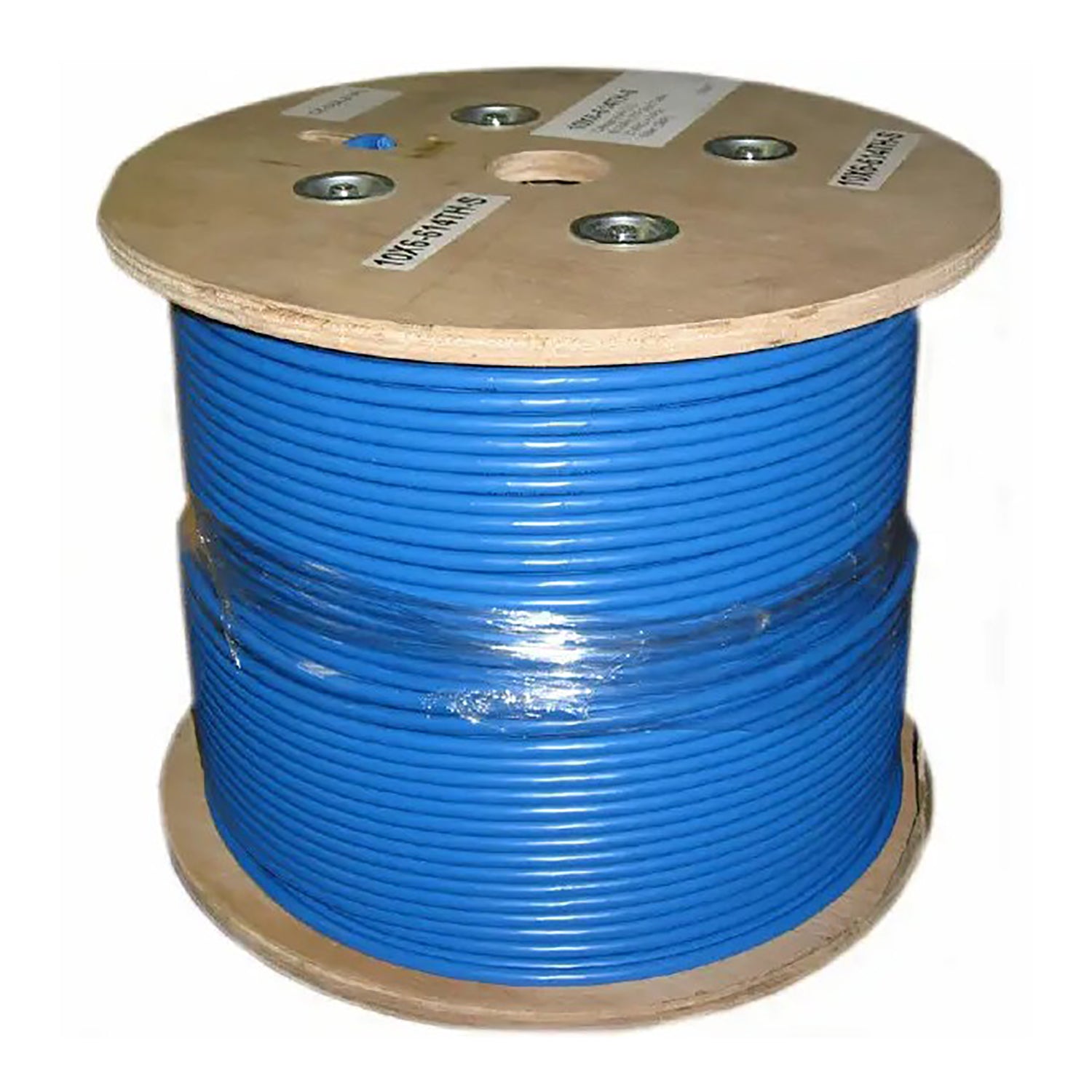

Convenient Length: 1,000-foot spool provides installation flexibility for residential, commercial, and industrial environments.
-
Future-Proof and Ready: Designed to meet current and future networking needs with consistent, repeatable performance.
-
Crosstalk Reduction: Cross-fill keeps pairs separate and reduces interference up to and beyond 500 MHz.
-
Heavy-Duty: Manufactured for maximum durability, ideal for future-proof installations in demanding infrastructure.
Construction:
- Conductor Material: 23 AWG Solid Bare Copper
- Insulation Material: Polyolefin (PO)
- Color Code: BL & WH, OR & WH, GN & WH, BR & WH
- Filler Material: Polyolefin (PO)
- Tear Cord Material: Multifilament Polyester
- Jacket Material: Flame Retardant PVC Compound (FRPVC)
- Jacket Color: Blue
Standards Compliance:
- ANSI/TIA-568.2-D
- ISO/IEC 11801
- EN 50173-1 Class EA
- IEC 61156-5
- UL 1666 (CMR)
- UL 444
- CSA 22.2 NO.214
- RoHS Compliant
